Fixed Dental Lamp Mount — Custom Configuration

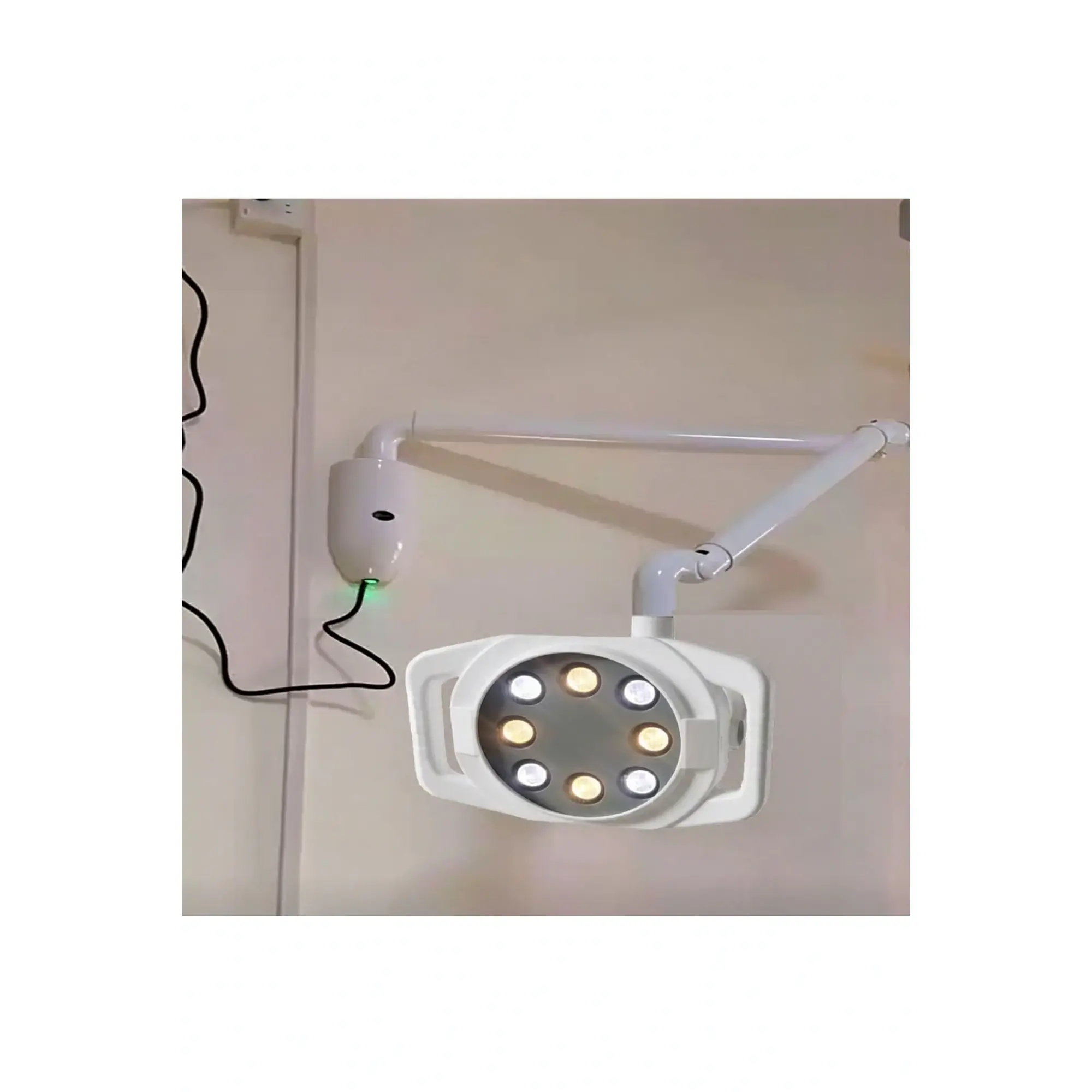

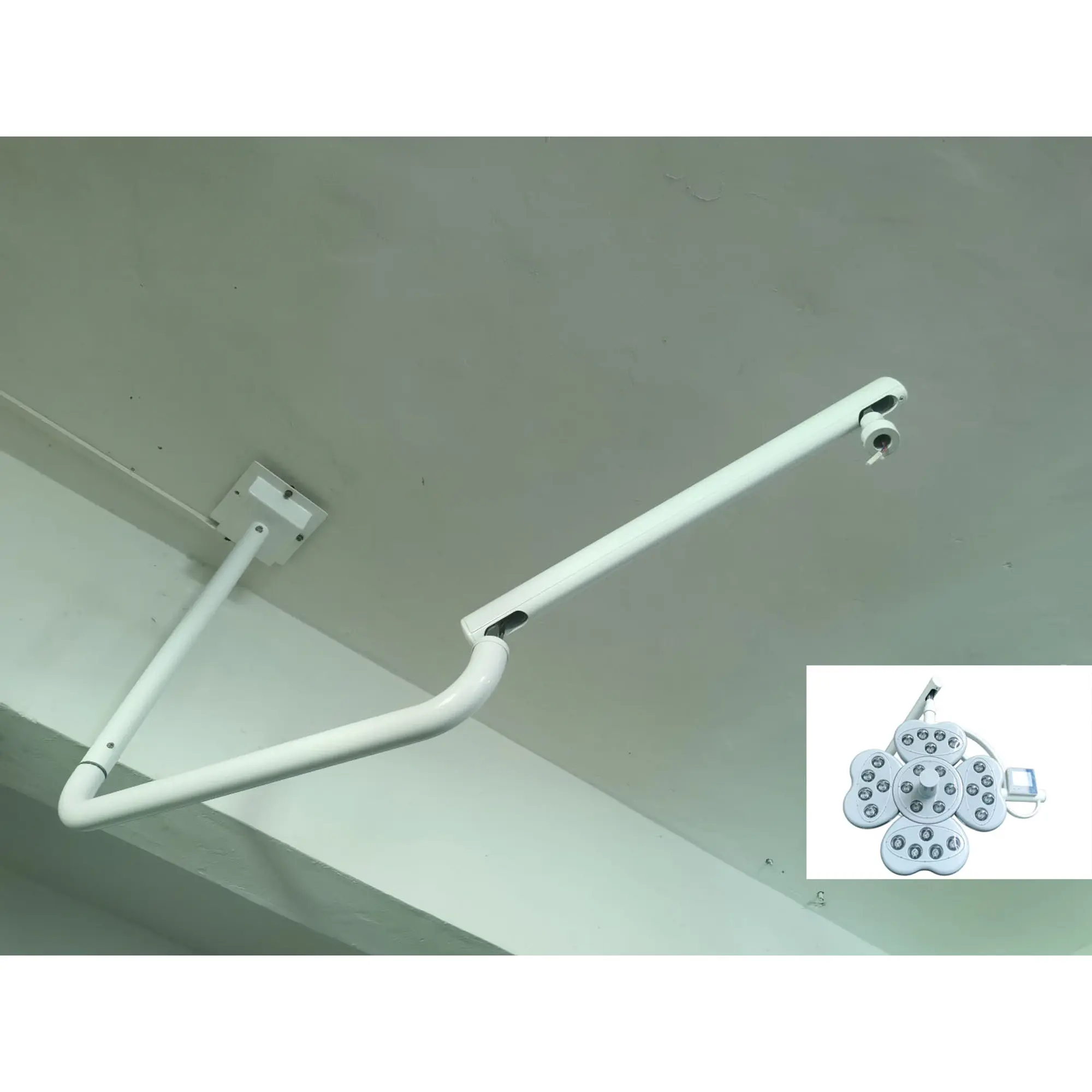

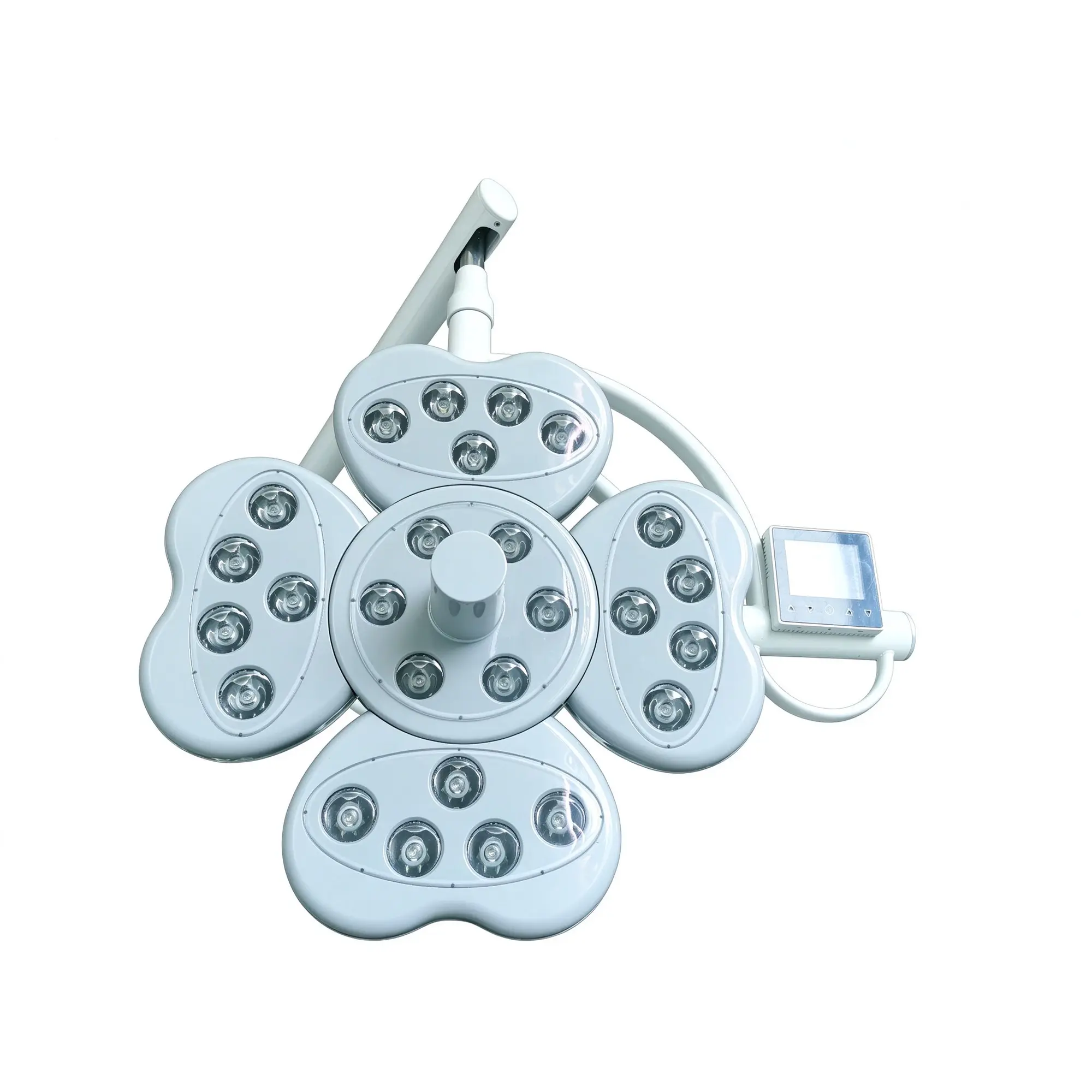

This custom fixed dental lamp mount page groups the submitted bracket, support and illustrated lamp-installation references in one place. Use the gallery to identify the mounting concept needed for your dental-light project. A bracket, arm connection and light head perform different functions within the installation, so the quotation must identify which parts are supplied. An image of an assembled lamp does not mean that every illustrated head or support accessory is included with the mount.

A fixed lamp support must be reviewed with its supporting structure and the complete moving load. Provide the head and arm masses, offset from the fixing surface, mounting orientation and available installation space. Include the fixing-hole pattern, shaft dimensions and any cable passage. Structural fixing and installation requirements depend on the actual building or equipment design. We do not infer an anchor specification or a load rating from a bracket photograph. Obtain the necessary site or equipment engineering approval for the proposed fixing arrangement before installation.

Prepare an interface drawing that identifies the base, connection shaft, arm attachment and clearances around nearby equipment. If electrical wiring passes through the mount, define the cable route and the access needed for installation and servicing. State whether screws, cover pieces, connectors or related hardware are required in the supplied scope. Configuration differences should be resolved on the drawing rather than left to a generic product name. The gallery provides useful physical references, but it does not establish that a mount fits every dental chair, wall or ceiling assembly.

For a custom bracket quotation or dental lamp mounting bracket OEM order, send the selected reference image, dimensioned drawing, proposed load and target quantity. Include the finish, packaging needs, destination market and intended installation schedule. Ask for the sample process, current production timing and confirmed supplied-parts list. Check the sample against the actual connection and installation envelope before approving it. Keep the final drawing revision on both the quotation and purchase order so later deliveries refer to the same fixed dental mount specification rather than an earlier photographic example.
