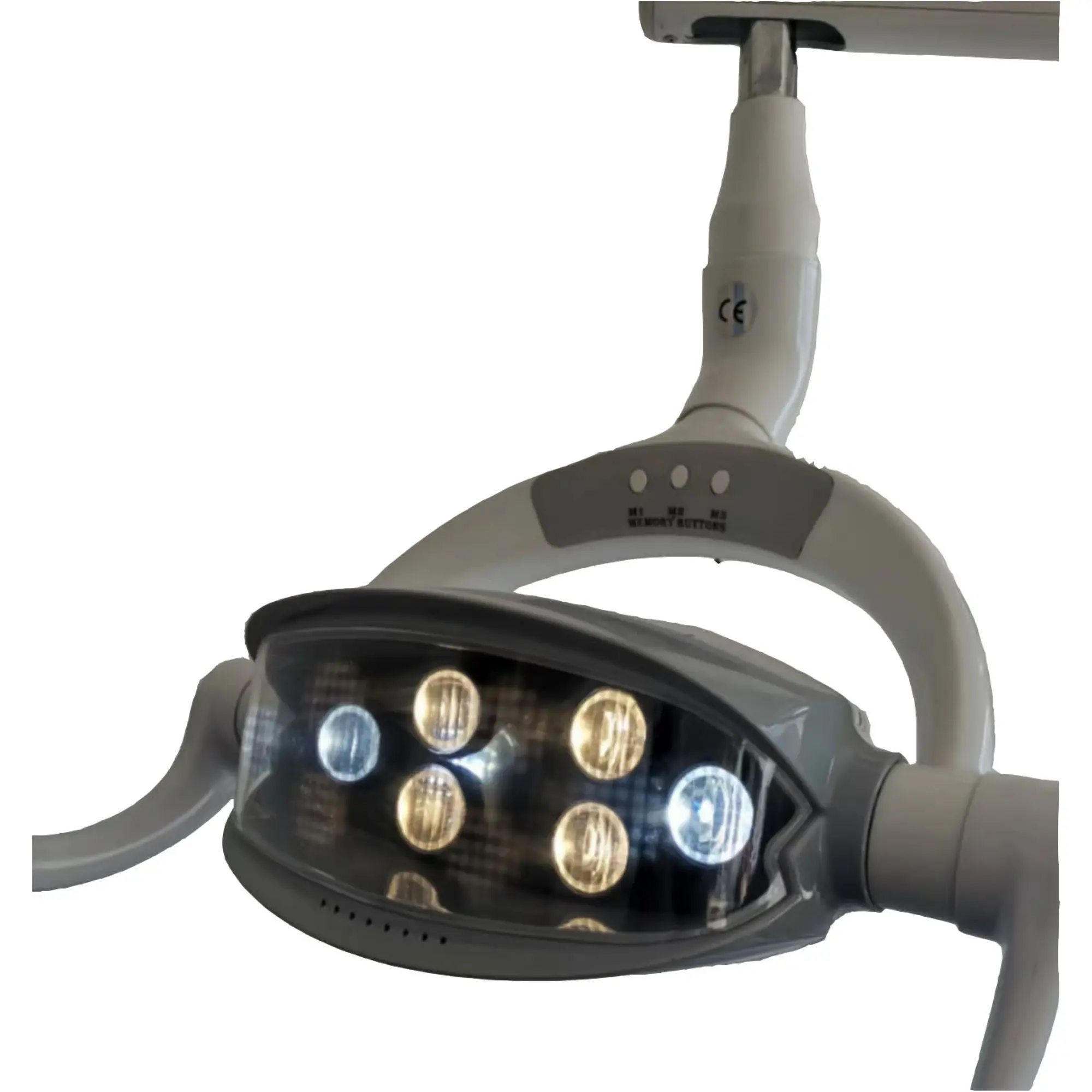

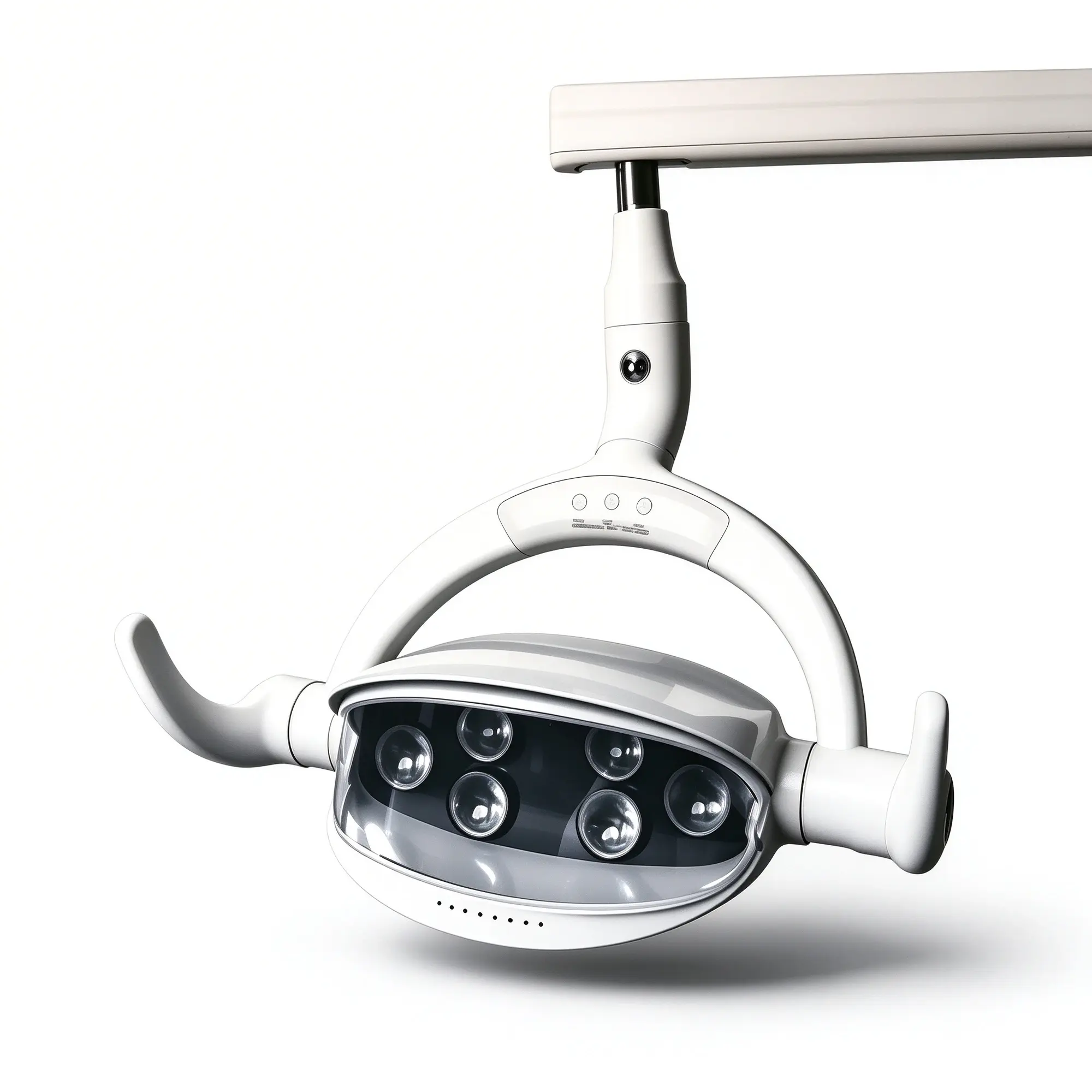

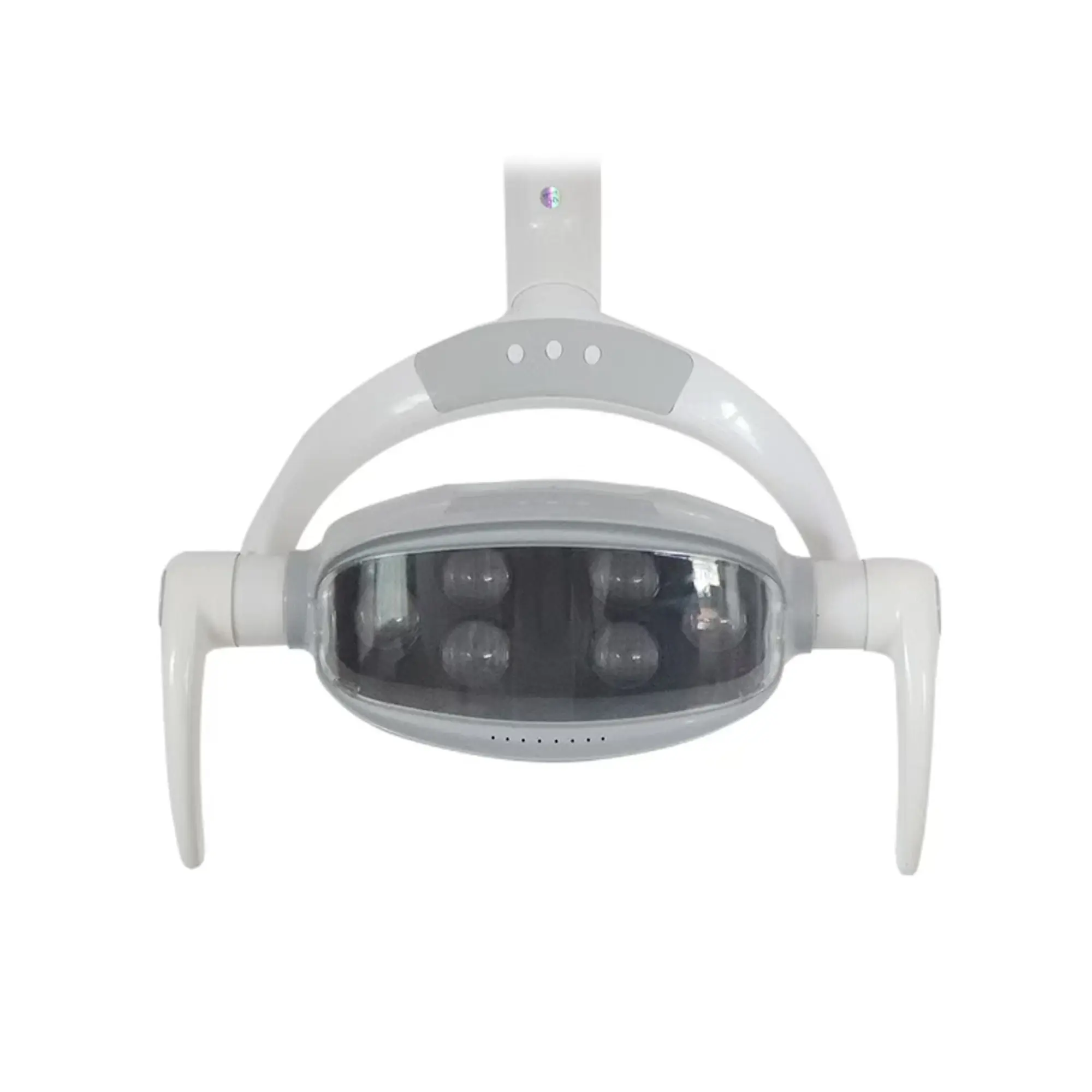

CL106 6-LED Dental Operating Light

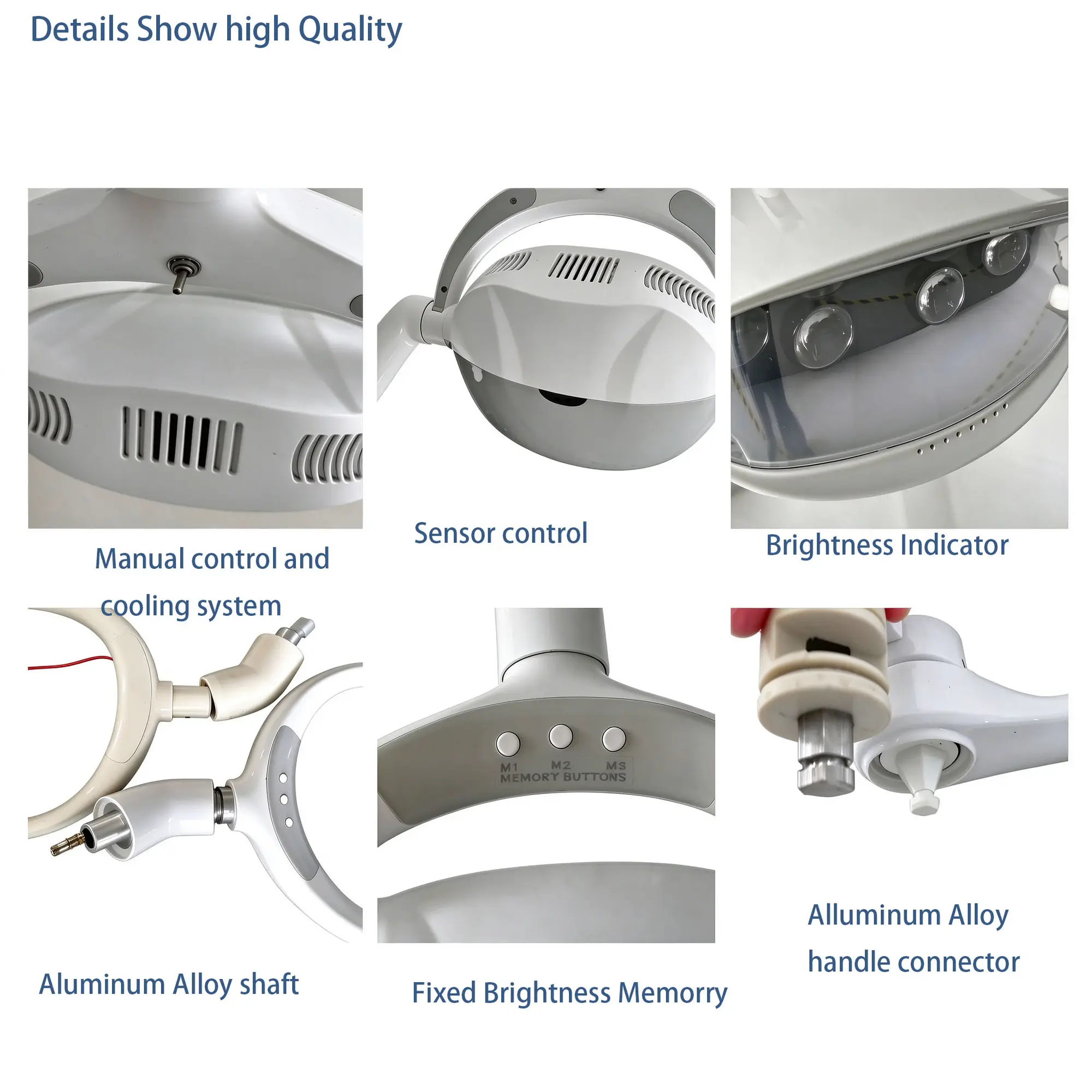

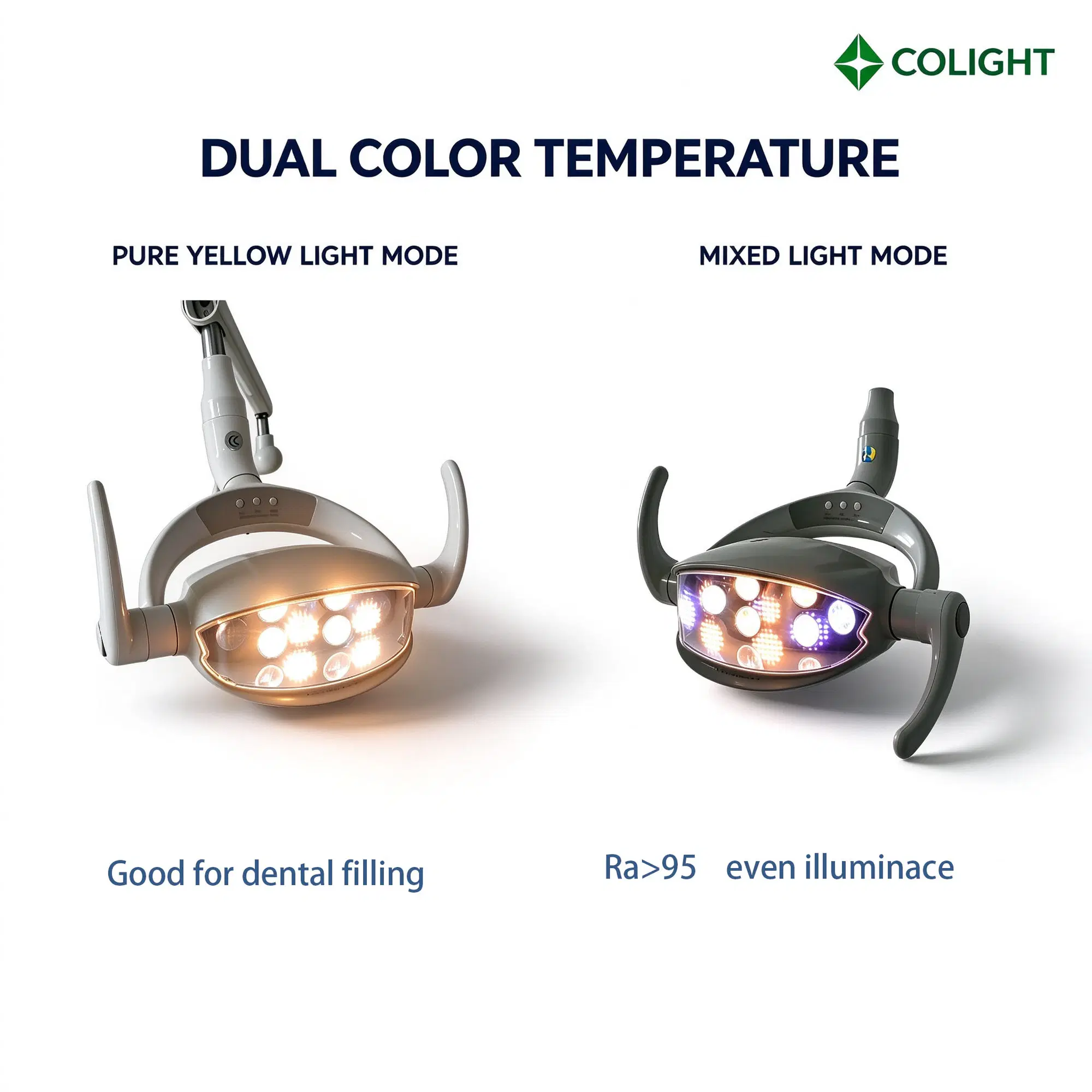

The CL106 combines six LEDs with a published 22,000–68,000 lux range, 18 W rated power and brightness memory. The brightness indicator, sensor and manual adjustment, and 3000 K, 4000 K and 5500 K settings give purchasing teams specific functions to compare against their equipment brief. Smart cooling and an all-aluminum-alloy pivot are listed in the supplied parameter table. Compare this model by its optical range and control features rather than assuming it shares the same specification as another six-LED light head.

The CL106 uses 12–24 V AC input and a 22 mm or 26 mm connector shaft. Match both to the dental-unit drawing before ordering. Check the available supply, cable termination, arm connection, head movement and handle clearance as a single installation. The listed pivot material is all aluminum alloy. Use the published 1.5 kg net weight when discussing support requirements, while obtaining the arm supplier's load and movement limits separately. A matching shaft diameter does not confirm cable compatibility, reach or stability.

For a replacement project, send the current lamp label, connector measurements and installation photographs. For a new dental-chair platform, supply the proposed interface drawing and electrical arrangement. Identify whether the quotation is for the head alone or includes an arm, bracket, adapter or additional mounting components.

Use a CL106 sample to review brightness recall, indicator visibility and color-temperature selection in the intended installation. Confirm sensor access and manual adjustment when the head is positioned at different points above the chair. The source lists 1.5 kg net weight, 2 kg gross weight and a three-year warranty for this head. Agree the arm, mounting hardware and electrical accessories separately. Keep the approved model and configuration on the repeat-order specification so purchasing does not substitute another six-LED head based only on appearance.

When recording results, identify the sample model, ordered settings, power source and mounting arrangement. Ask for any measurement conditions needed to compare the published optical values with your own acceptance test. Photographs help identify the configuration but do not replace agreed technical acceptance criteria.

For an OEM supply or bulk-order quotation, specify the CL106, evaluation quantity, anticipated repeat-order quantity and destination market. Include the selected connector, lighting configuration, labeling needs and required instruction language. Ask for the proposed sample process, current production schedule, packaging arrangement and commercial basis so the quotation can be reviewed by purchasing, engineering and logistics together. Minimum order quantity, lead time and any branding option depend on the agreed scope and are not represented as fixed catalogue promises.

The published packing reference is 37 × 17 × 40 cm with 2 kg gross weight. Confirm the final shipment configuration before freight planning, especially if additional support hardware is included. Request the model-specific documents required by your importing or qualification process. Approve the product configuration and sample before releasing the production order.
