CL108A 8-LED Dental Operating Light

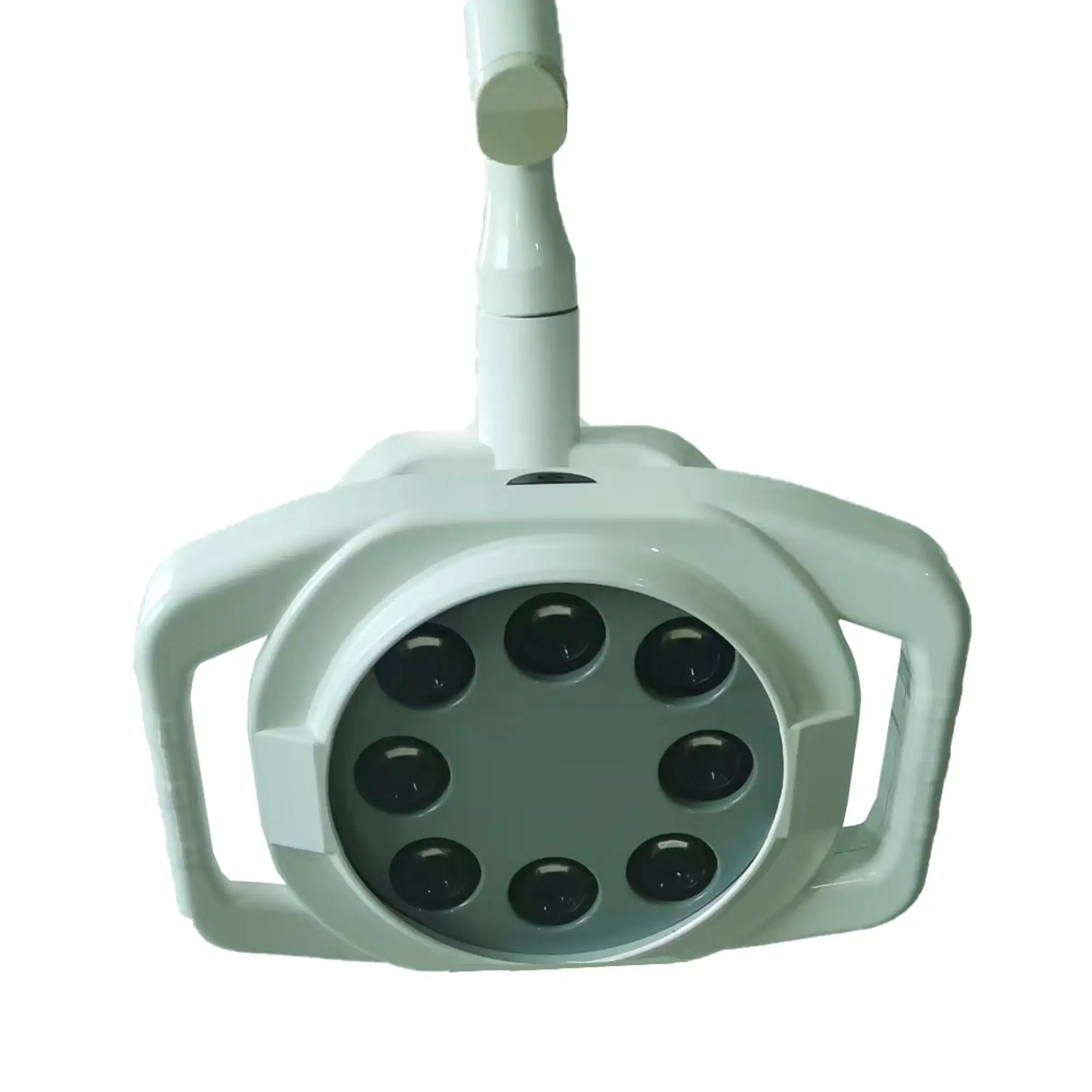

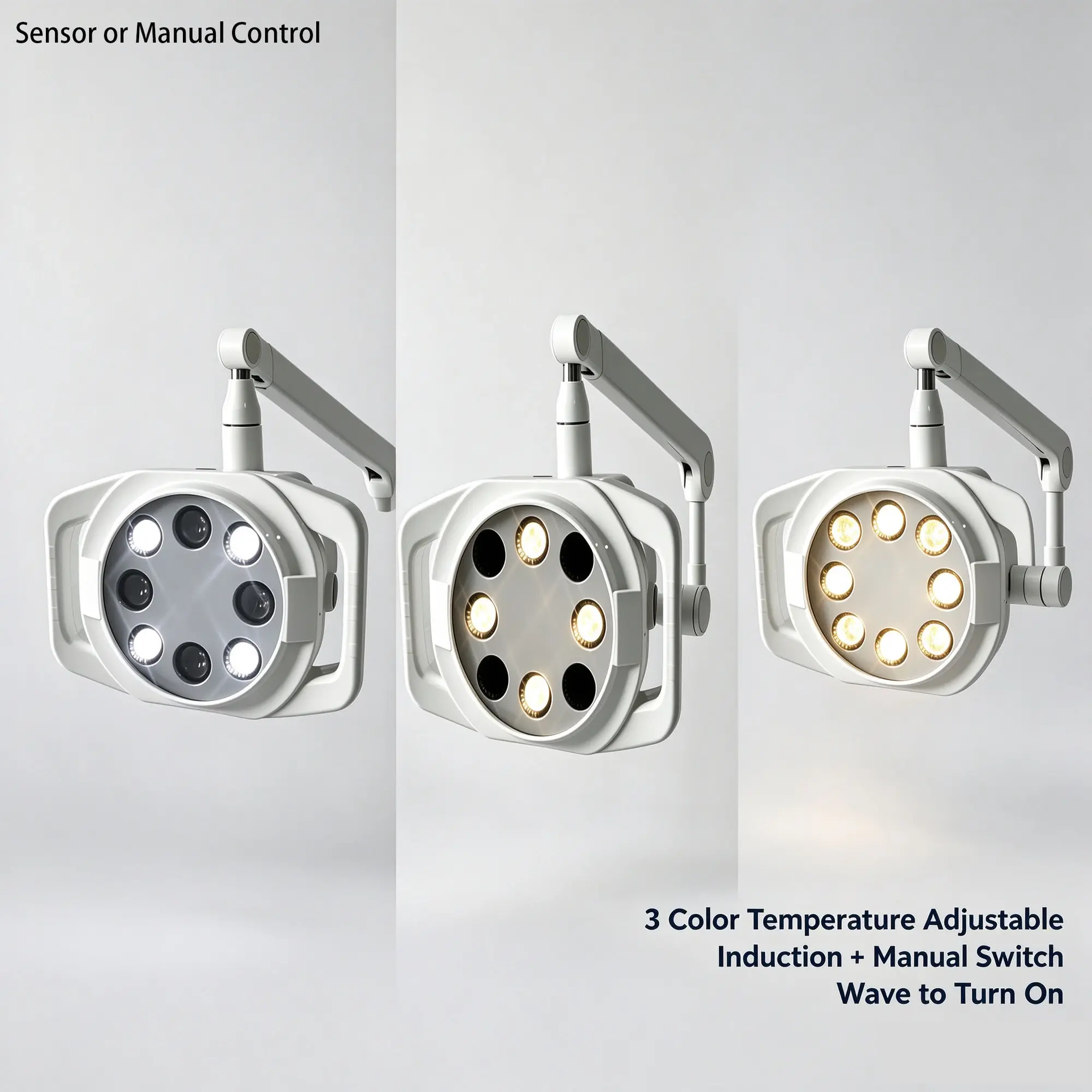

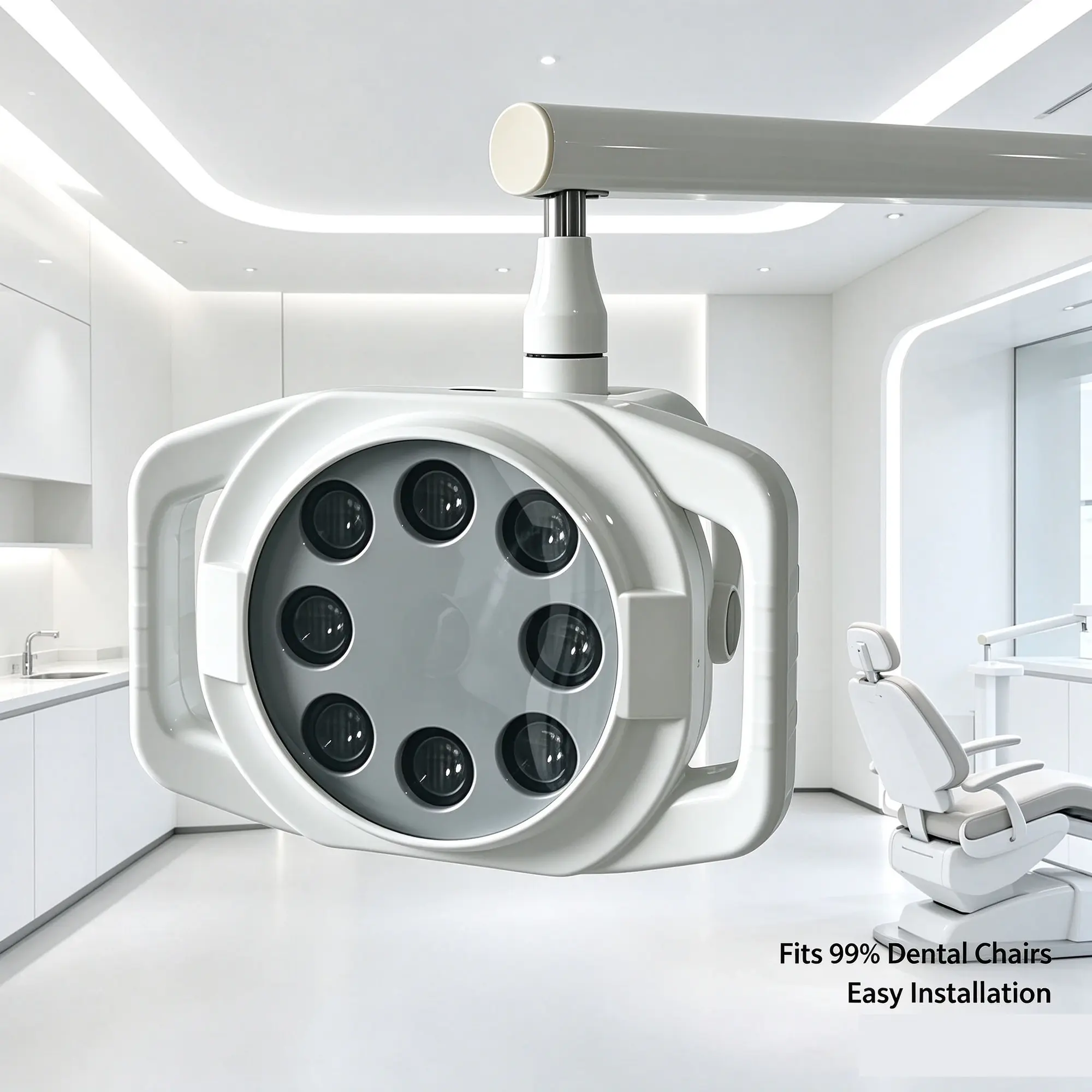

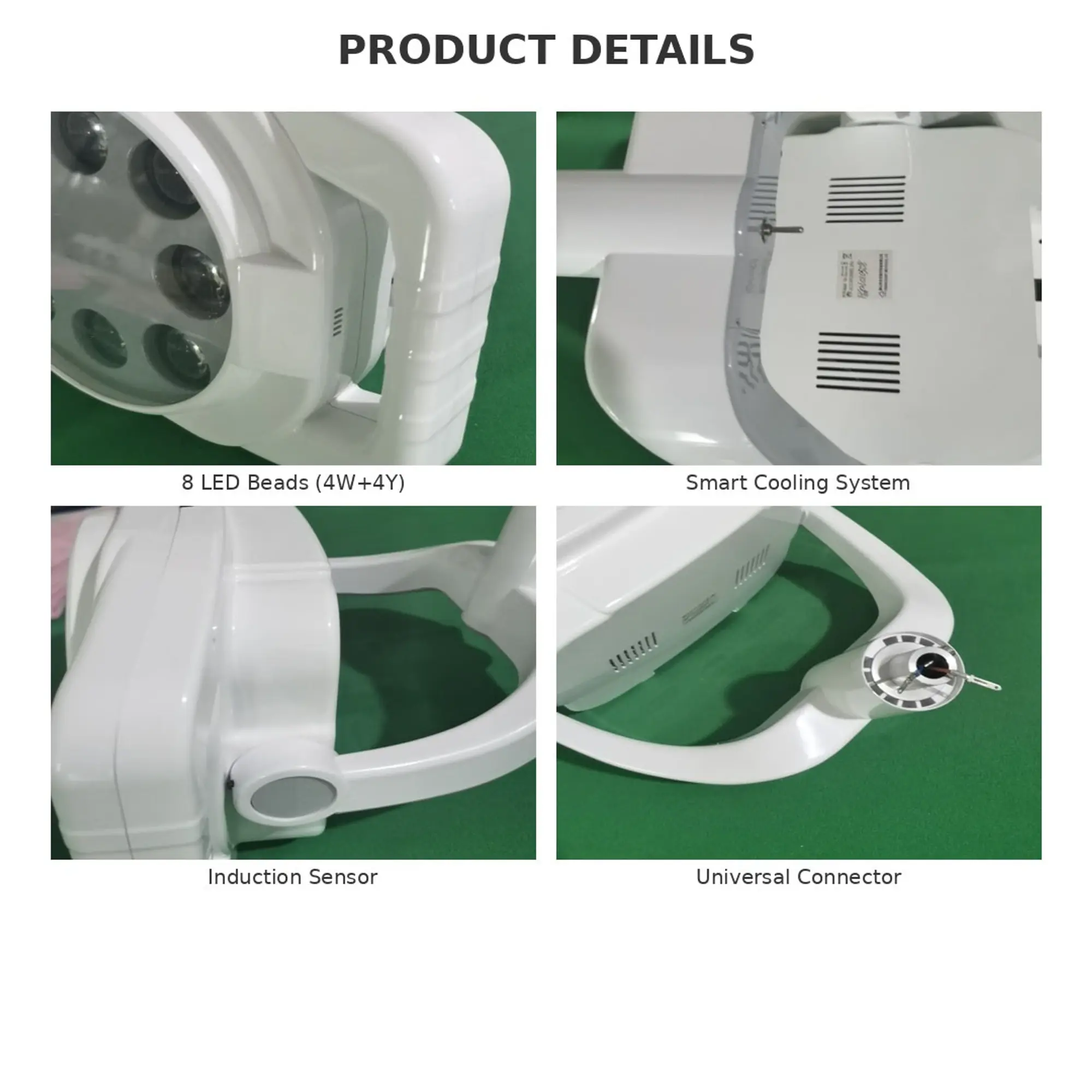

The CL108A is an eight-LED dental operating light with a published 20,000–60,000 lux range and 35 W rated power. Three listed color-temperature settings, sensor and manual adjustment, smart cooling and adjustable joint tension distinguish its purchasing specification. Adjustable tension should be evaluated with the intended arm and operating positions, because the assembled mounting arrangement affects positioning. The model uses an all-aluminum-alloy pivot and offers 22 mm or 26 mm connector choices. A connector diameter alone is not a complete statement of compatibility with an existing dental chair.

The CL108A uses 12–24 V AC input and a 22 mm or 26 mm connector shaft. Match both to the dental-unit drawing before ordering. Check the available supply, cable termination, arm connection, head movement and handle clearance as a single installation. The listed pivot material is all aluminum alloy. Use the published 2 kg net weight when discussing support requirements, while obtaining the arm supplier's load and movement limits separately. A matching shaft diameter does not confirm cable compatibility, reach or stability.

For a replacement project, send the current lamp label, connector measurements and installation photographs. For a new dental-chair platform, supply the proposed interface drawing and electrical arrangement. Identify whether the quotation is for the head alone or includes an arm, bracket, adapter or additional mounting components.

For CL108A sample qualification, demonstrate sensor and manual adjustment, the three temperature settings and the joint-tension adjustment with the chosen support. Confirm the head remains positioned over the required operating envelope without assuming that another arm has the same load capacity. The stated 2 kg net weight, 2.5 kg gross weight and carton dimensions refer to the published head configuration. The source lists a three-year warranty. Define the supplied arm, connectors and accessories in the quotation before comparing offers from different suppliers.

When recording results, identify the sample model, ordered settings, power source and mounting arrangement. Ask for any measurement conditions needed to compare the published optical values with your own acceptance test. Photographs help identify the configuration but do not replace agreed technical acceptance criteria.

For an OEM supply or bulk-order quotation, specify the CL108A, evaluation quantity, anticipated repeat-order quantity and destination market. Include the selected connector, lighting configuration, labeling needs and required instruction language. Ask for the proposed sample process, current production schedule, packaging arrangement and commercial basis so the quotation can be reviewed by purchasing, engineering and logistics together. Minimum order quantity, lead time and any branding option depend on the agreed scope and are not represented as fixed catalogue promises.

The published packing reference is 39.5 × 35.5 × 18.5 cm with 2.5 kg gross weight. Confirm the final shipment configuration before freight planning, especially if additional support hardware is included. Request the model-specific documents required by your importing or qualification process. Approve the product configuration and sample before releasing the production order.
