Dental Lamp Arm — Custom Configuration

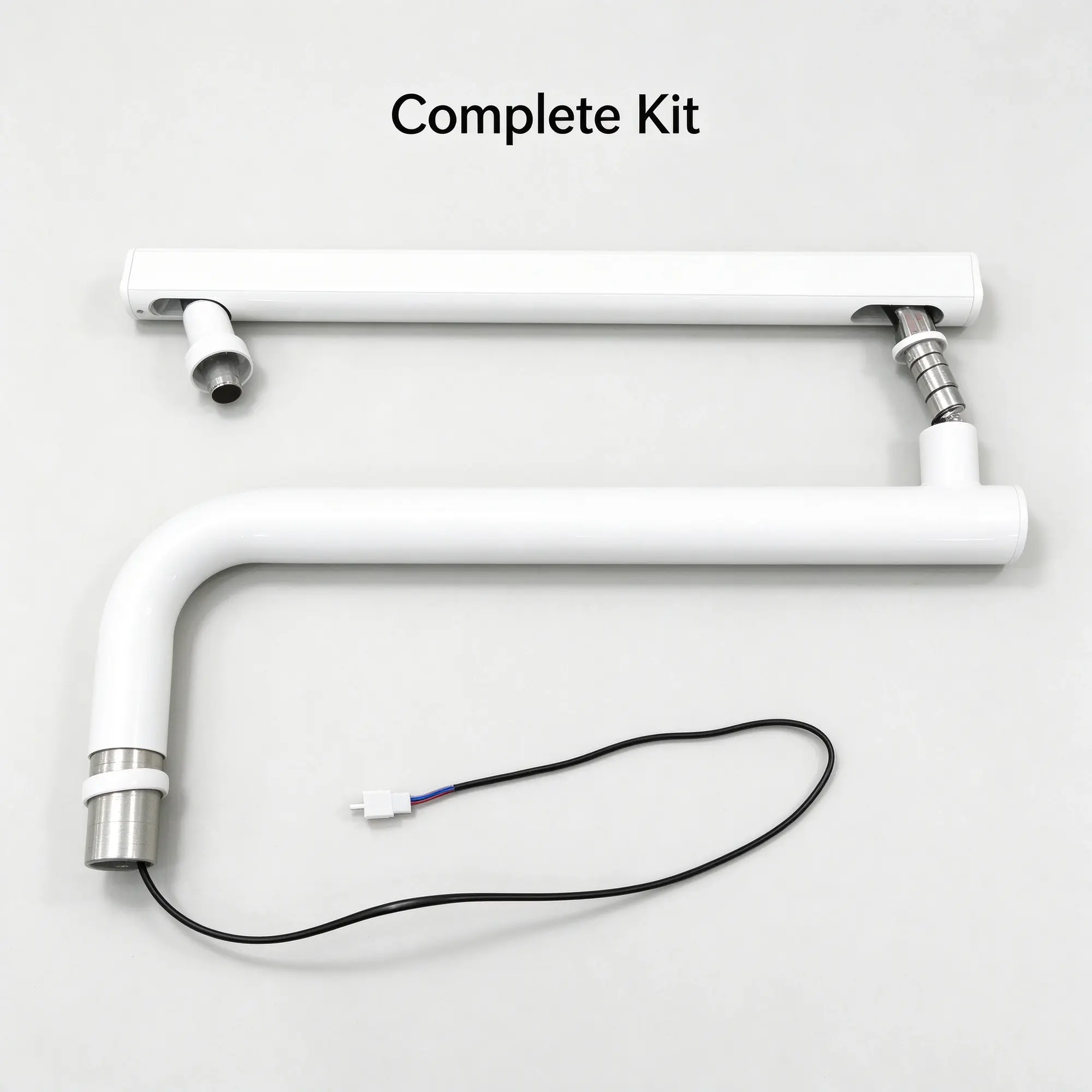

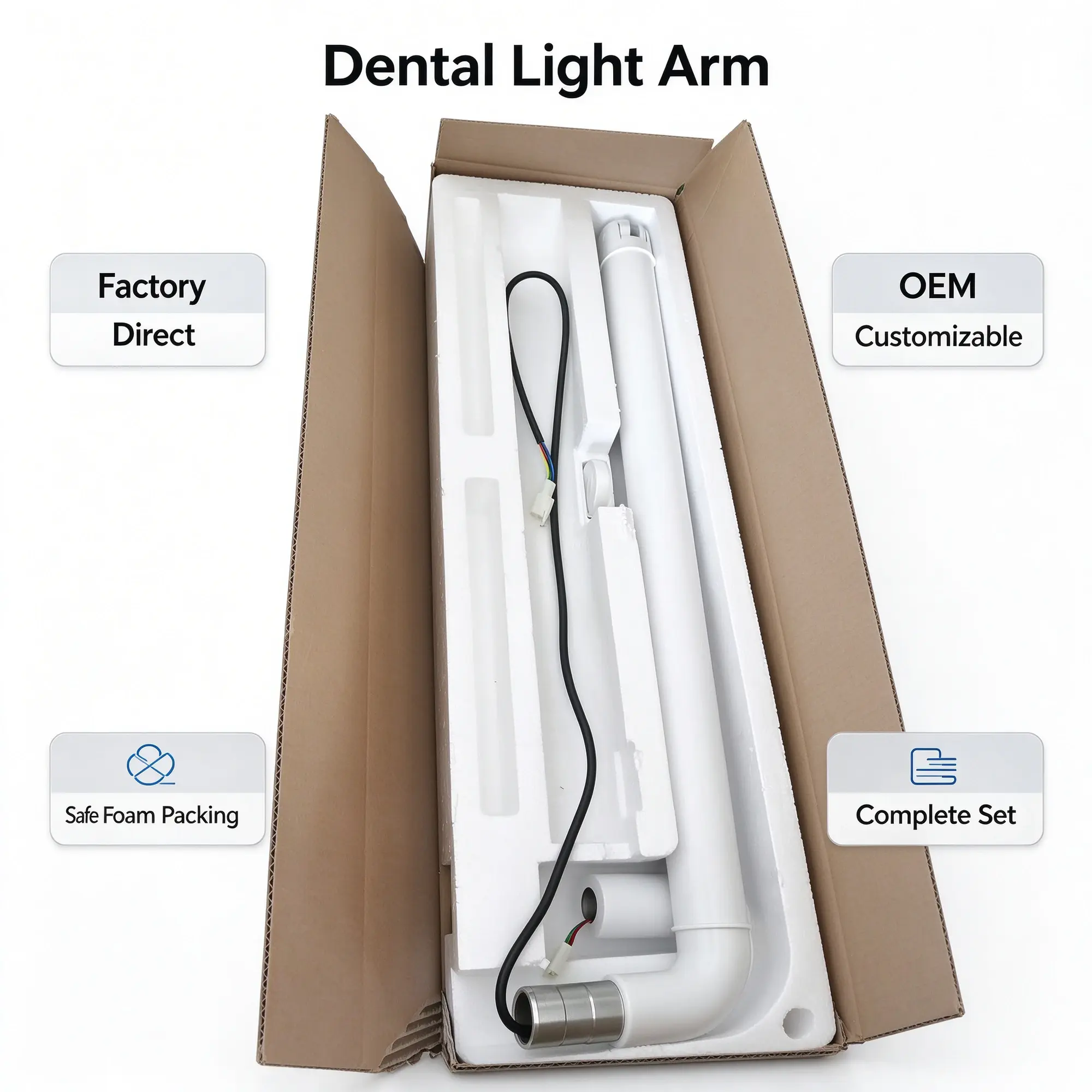

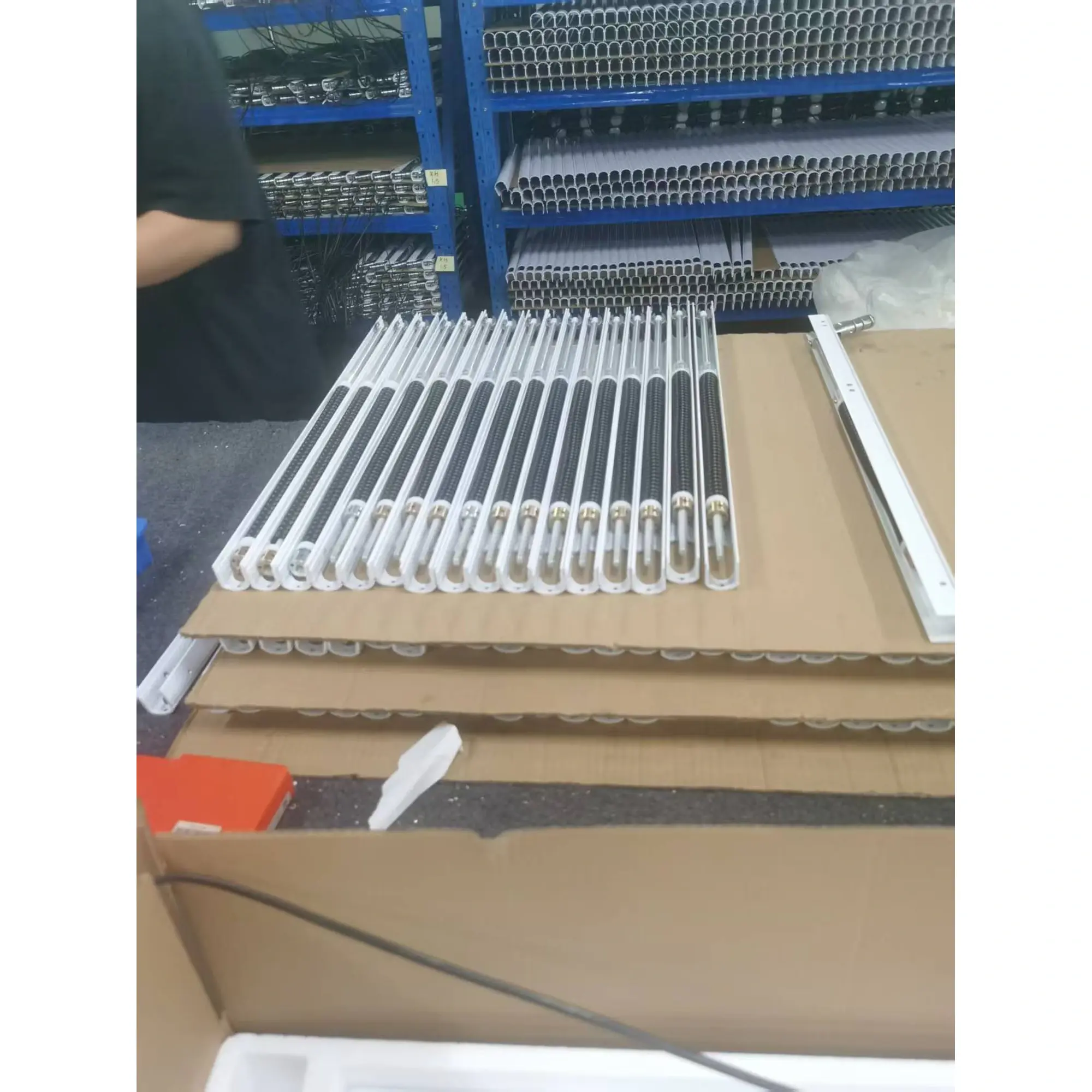

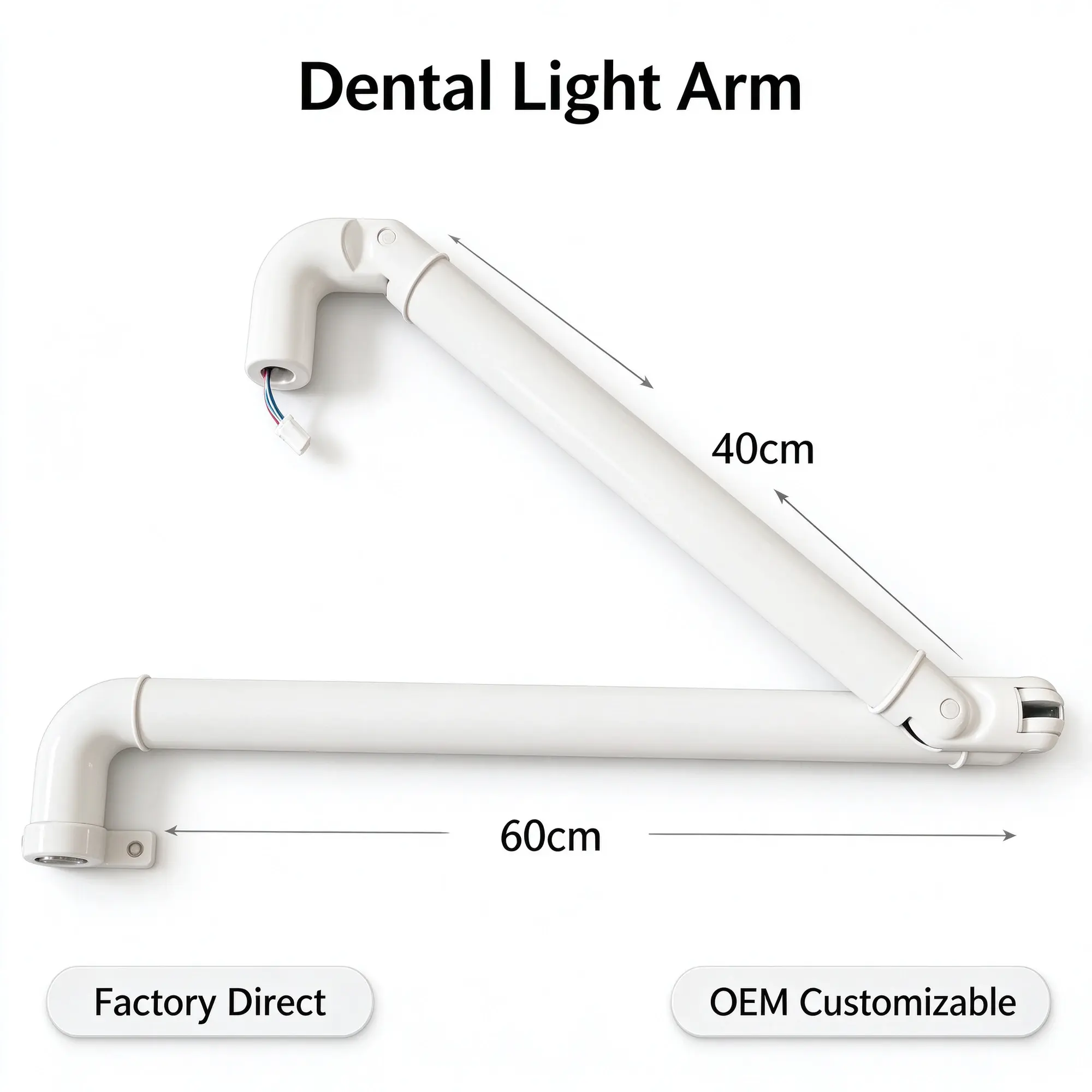

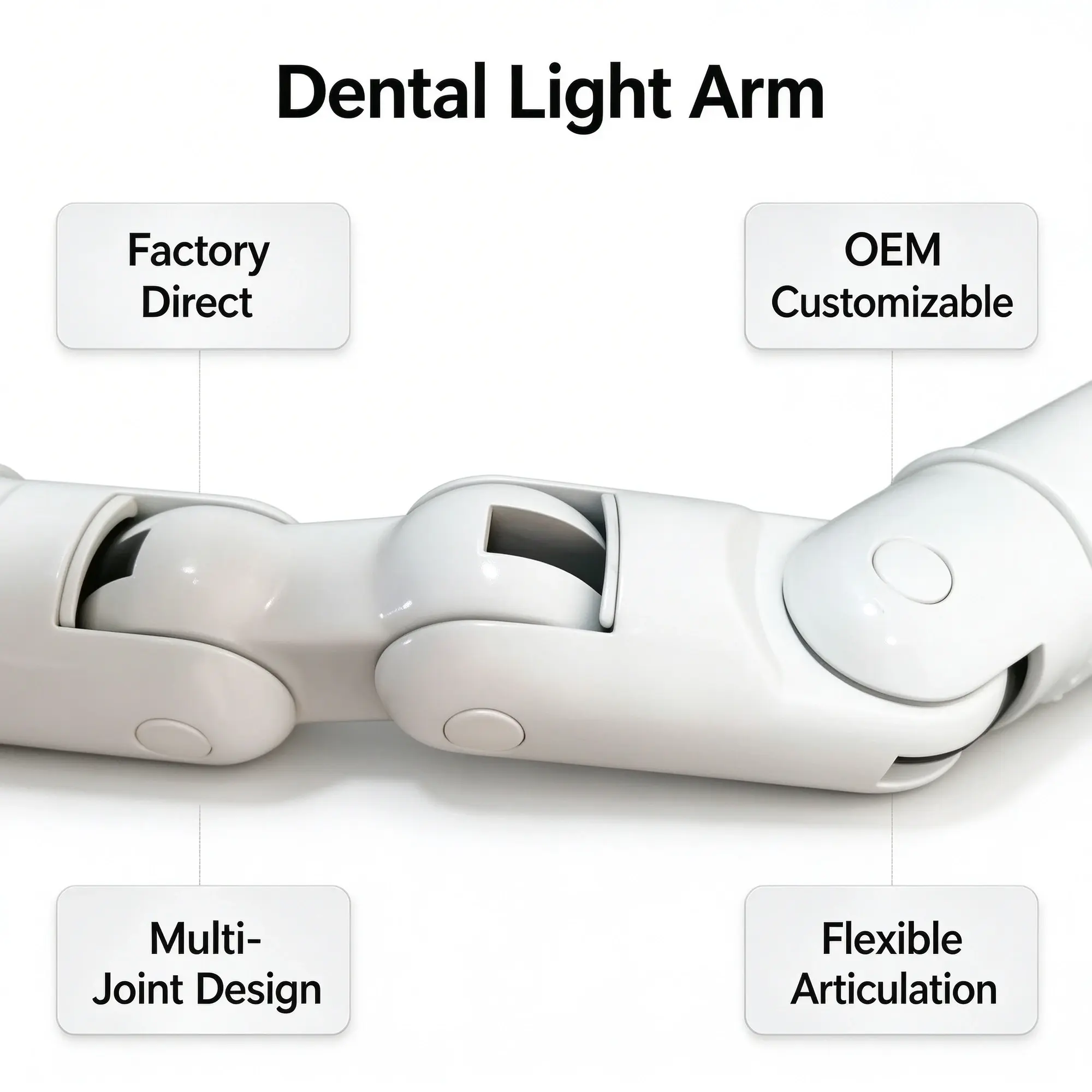

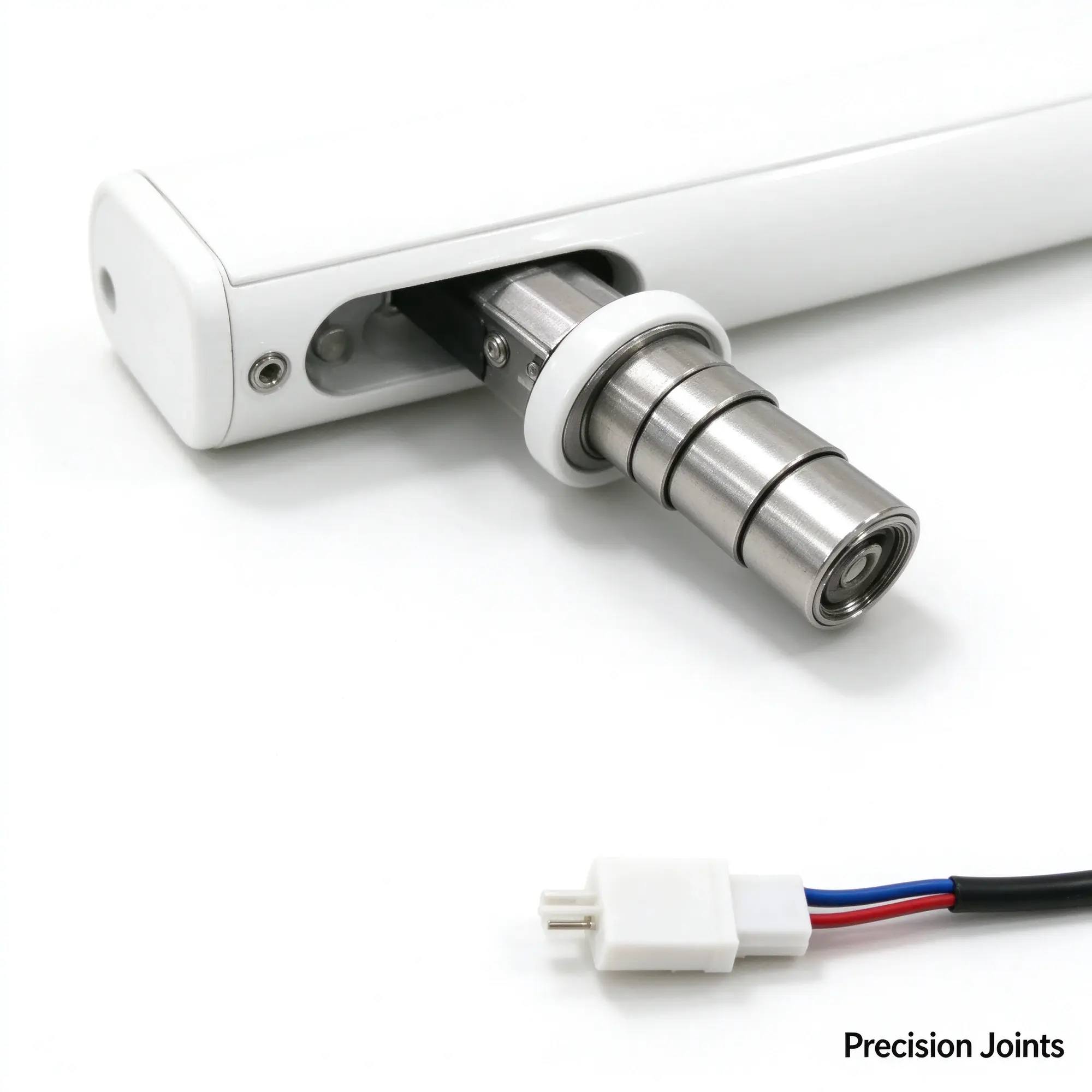

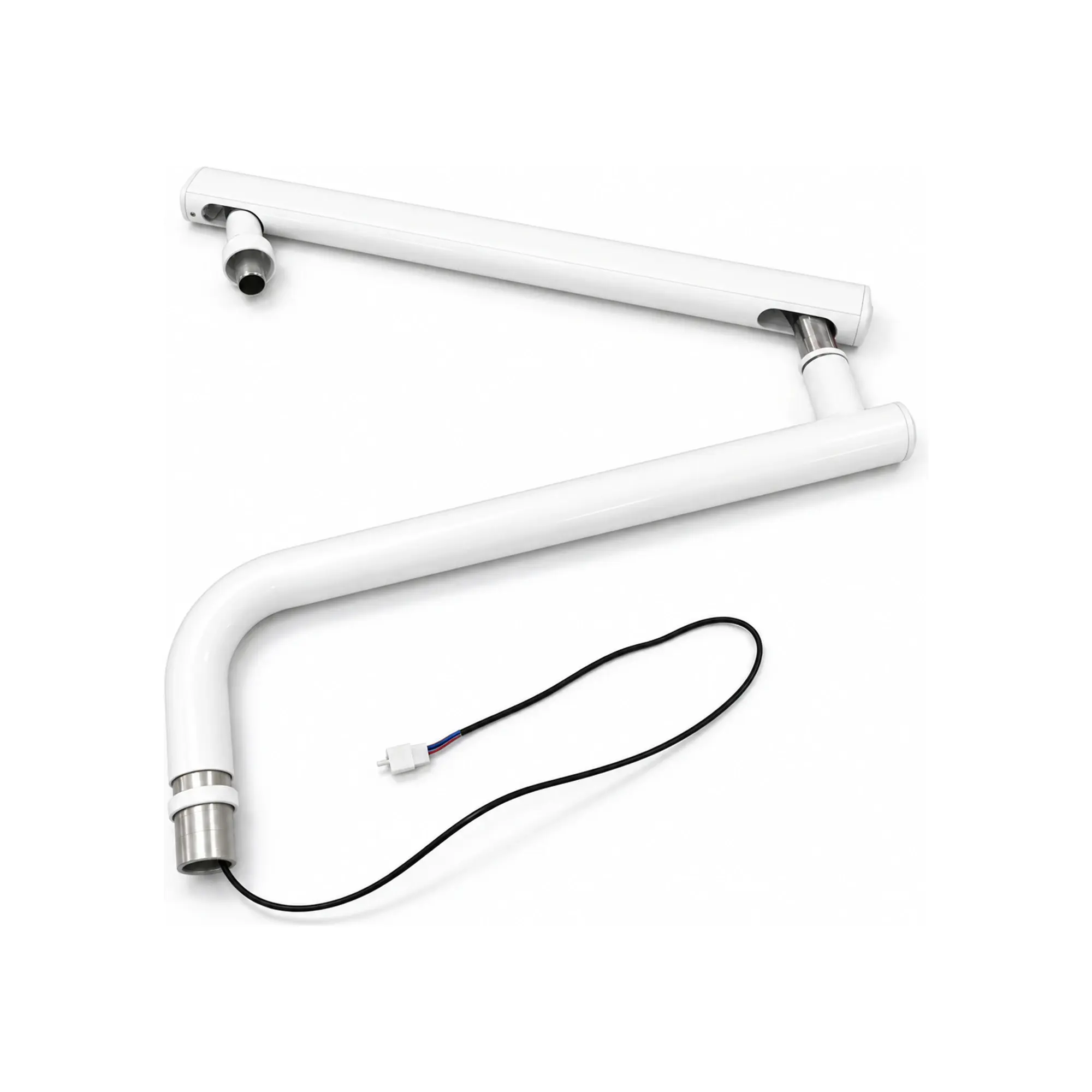

A dental lamp arm connects the operating-light head to its supporting equipment and establishes the available positioning range. The gallery brings the submitted arm assemblies, joint details, connection views and packing references into one product page. Select the arrangement that matches your equipment concept and identify it with your enquiry. Dimensions shown on an individual drawing belong to that illustrated configuration. They should not be applied to every arm or joint shown in the same gallery without confirmation.

Start the mechanical review with the mass of the lamp head, required reach and mounting position. Supply the shaft and socket dimensions, fixing geometry, permitted movement and surrounding equipment clearances. Check the head position throughout the intended working envelope rather than only at the arm's neutral position. Joint behavior, adjustment and support requirements must be agreed for the selected assembly. We do not publish a common load rating or universal chair compatibility across the pictured arm configurations, because those values need a matched drawing and installation review.

For a powered lamp, review the cable route through the arm together with the head connection and dental-unit termination. State the voltage, conductor requirements, connector arrangement and service-access needs for your equipment. Identify whether you need the arm assembly, cable, mounting hardware or a complete matched support package. A white finish or similar curved profile does not establish that two arms have identical joints or interfaces. Use the detail photographs to identify the desired construction, then agree a drawing that defines the actual supplied components.

For a dental lamp arm OEM supplier enquiry or bulk order, send the selected gallery reference, head information, installation drawing, sample quantity and production forecast. Include destination market, packing constraints, finish requirements and any labeling needs. Request a sample plan, quotation and current lead time for that precise assembly. Assess movement, positioning, cable handling and clearances on the equipment before approving production. Retain the approved drawing revision and supplied-parts list with the purchase order. This makes repeat sourcing more reliable than describing the product only as a dental light support arm.
