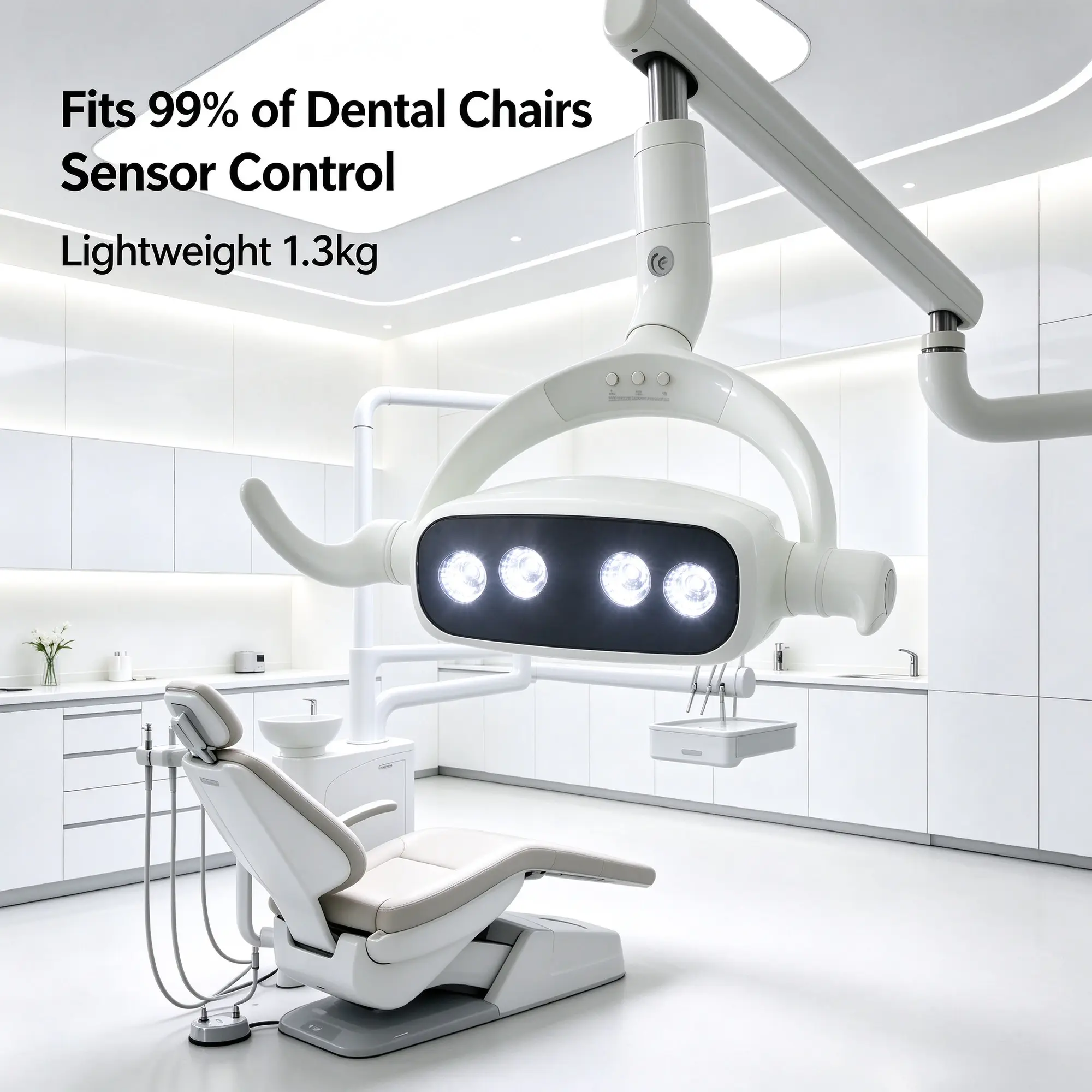

CX104 4-LED Dental Operating Light

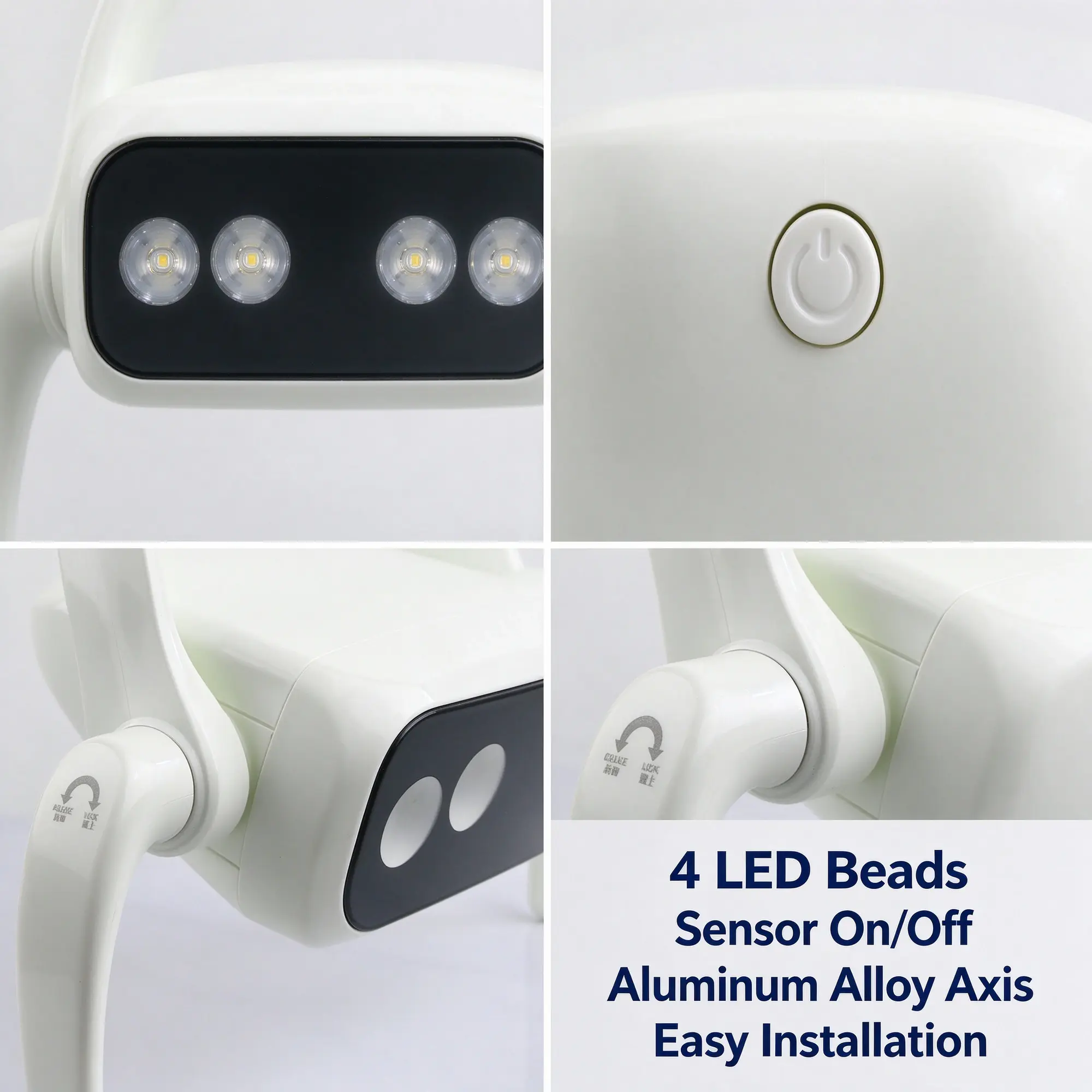

The CX104 is a compact four-LED light head for dental-chair equipment projects that need a straightforward white-light configuration. Its published 14,000–20,000 lux range and 12 W rated power distinguish it from the higher-output six-LED models. Sensor and on/off-button operation provide two control methods to assess on the sample. Select the ordered white-light temperature before purchasing. The listed 3000 K, 4000 K and 5500 K choices do not mean that one supplied head necessarily switches between all three settings.

The CX104 uses 12–24 V AC input and a 22 mm or 26 mm connector shaft. Match both to the dental-unit drawing before ordering. Check the available supply, cable termination, arm connection, head movement and handle clearance as a single installation. The listed pivot material is aluminum and ABS. Use the published 1.3 kg net weight when discussing support requirements, while obtaining the arm supplier's load and movement limits separately. A matching shaft diameter does not confirm cable compatibility, reach or stability.

For a replacement project, send the current lamp label, connector measurements and installation photographs. For a new dental-chair platform, supply the proposed interface drawing and electrical arrangement. Identify whether the quotation is for the head alone or includes an arm, bracket, adapter or additional mounting components.

For a CX104 sample evaluation, check sensor response, button operation and the ordered white-light setting using the intended dental-unit supply. Confirm that the handles can be reached throughout the required operating envelope. Record the connector choice and mounting arrangement alongside the sample approval so a replacement order specifies the same head and interface. The published one-year warranty should be read together with the quotation terms and agreed supplied scope.

When recording results, identify the sample model, ordered settings, power source and mounting arrangement. Ask for any measurement conditions needed to compare the published optical values with your own acceptance test. Photographs help identify the configuration but do not replace agreed technical acceptance criteria.

For an OEM supply or bulk-order quotation, specify the CX104, evaluation quantity, anticipated repeat-order quantity and destination market. Include the selected connector, lighting configuration, labeling needs and required instruction language. Ask for the proposed sample process, current production schedule, packaging arrangement and commercial basis so the quotation can be reviewed by purchasing, engineering and logistics together. Minimum order quantity, lead time and any branding option depend on the agreed scope and are not represented as fixed catalogue promises.

The published packing reference is 42 × 32 × 15 cm with 1.6 kg gross weight. Confirm the final shipment configuration before freight planning, especially if additional support hardware is included. Request the model-specific documents required by your importing or qualification process. Approve the product configuration and sample before releasing the production order.
