CX106 6-LED Dental Operating Light

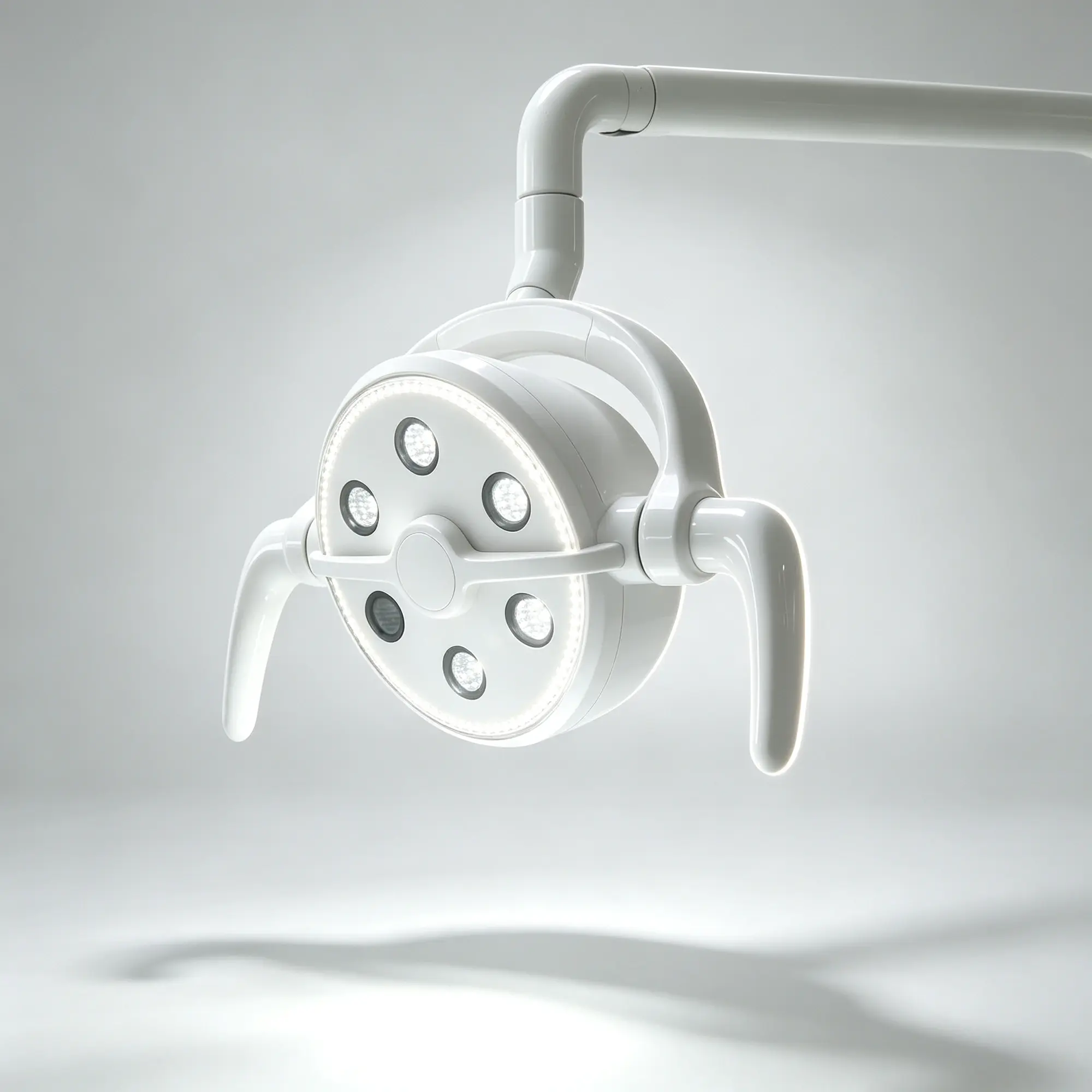

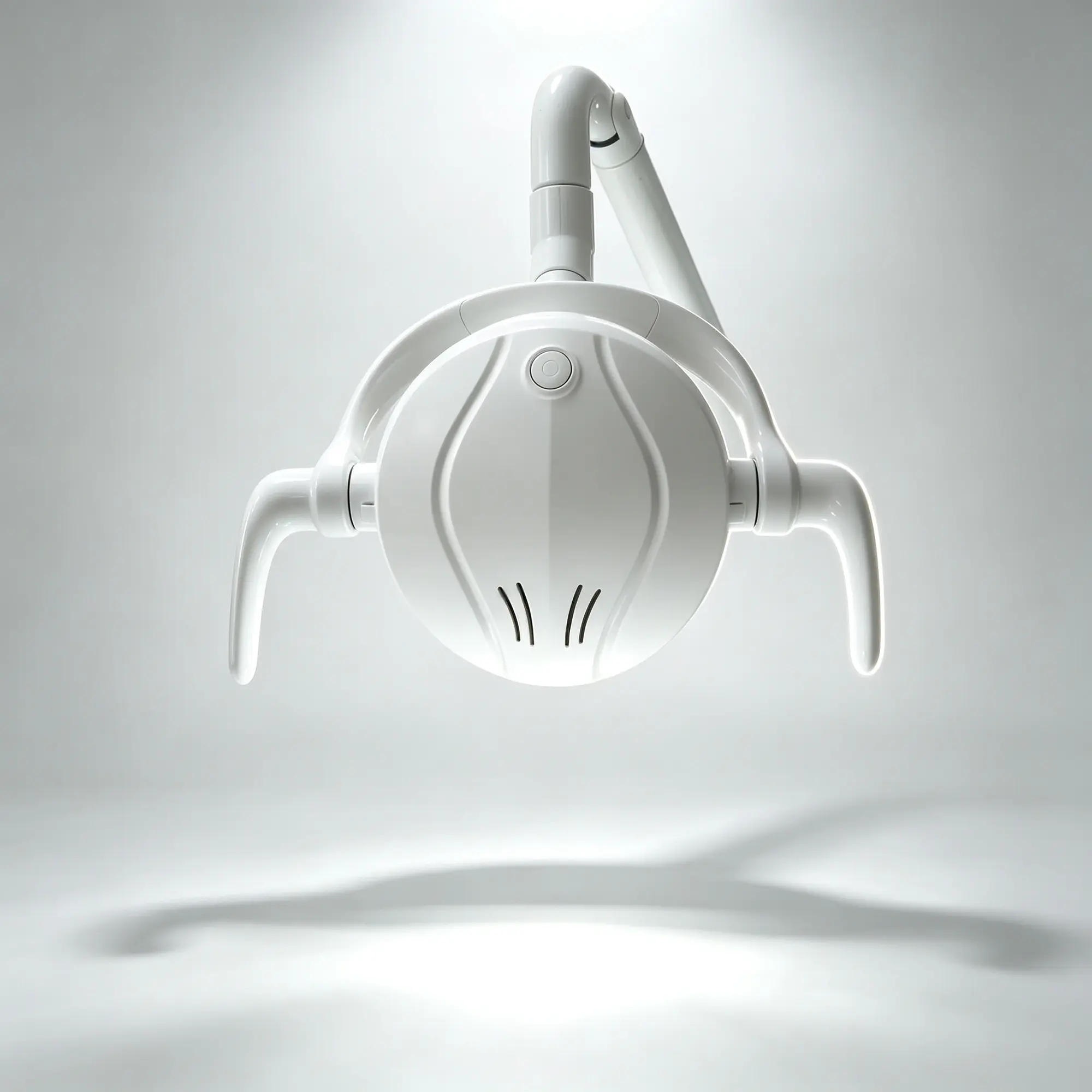

The CX106 combines a six-LED head with a published 14,000–48,000 lux range and 18 W rated power. It is described as a single white-light configuration rather than a multi-mode color-mixing lamp. This distinction matters when a distributor prepares its product listing or an equipment manufacturer defines the operator controls. The temperature entries identify choices to confirm for the order. Sensor and on/off-button operation, natural heat dissipation and the aluminum-and-ABS pivot assembly should be reviewed as part of the same configuration.

The CX106 uses 12–24 V AC input and a 22 mm or 26 mm connector shaft. Match both to the dental-unit drawing before ordering. Check the available supply, cable termination, arm connection, head movement and handle clearance as a single installation. The listed pivot material is aluminum and ABS. Use the published 1.4 kg net weight when discussing support requirements, while obtaining the arm supplier's load and movement limits separately. A matching shaft diameter does not confirm cable compatibility, reach or stability.

For a replacement project, send the current lamp label, connector measurements and installation photographs. For a new dental-chair platform, supply the proposed interface drawing and electrical arrangement. Identify whether the quotation is for the head alone or includes an arm, bracket, adapter or additional mounting components.

A CX106 qualification sample should demonstrate the ordered white-light setting, sensor response and physical button operation on the actual intended supply. Review the head position at the extremes of arm travel, not only in a straight-ahead photograph. Natural heat dissipation is the listed cooling arrangement; this model is not presented as having a separate smart cooling system. Keep the approved temperature, connector and supplied accessories on the purchase specification. The source lists a two-year warranty, with commercial terms confirmed in the quotation.

When recording results, identify the sample model, ordered settings, power source and mounting arrangement. Ask for any measurement conditions needed to compare the published optical values with your own acceptance test. Photographs help identify the configuration but do not replace agreed technical acceptance criteria.

For an OEM supply or bulk-order quotation, specify the CX106, evaluation quantity, anticipated repeat-order quantity and destination market. Include the selected connector, lighting configuration, labeling needs and required instruction language. Ask for the proposed sample process, current production schedule, packaging arrangement and commercial basis so the quotation can be reviewed by purchasing, engineering and logistics together. Minimum order quantity, lead time and any branding option depend on the agreed scope and are not represented as fixed catalogue promises.

The published packing reference is 42 × 32 × 15 cm with 1.8 kg gross weight. Confirm the final shipment configuration before freight planning, especially if additional support hardware is included. Request the model-specific documents required by your importing or qualification process. Approve the product configuration and sample before releasing the production order.
