CXV01 Chair-Mounted Dental X-Ray Film Viewer

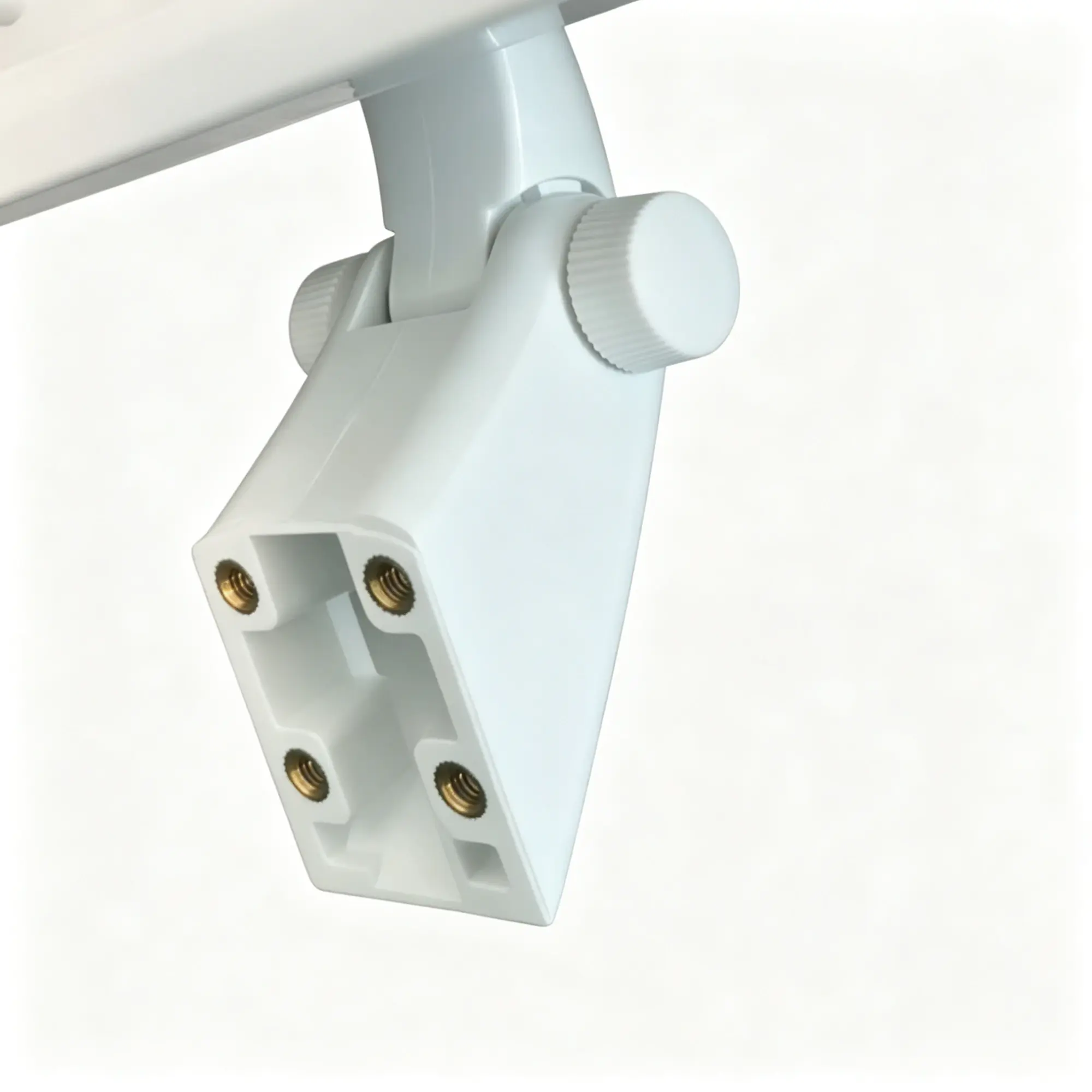

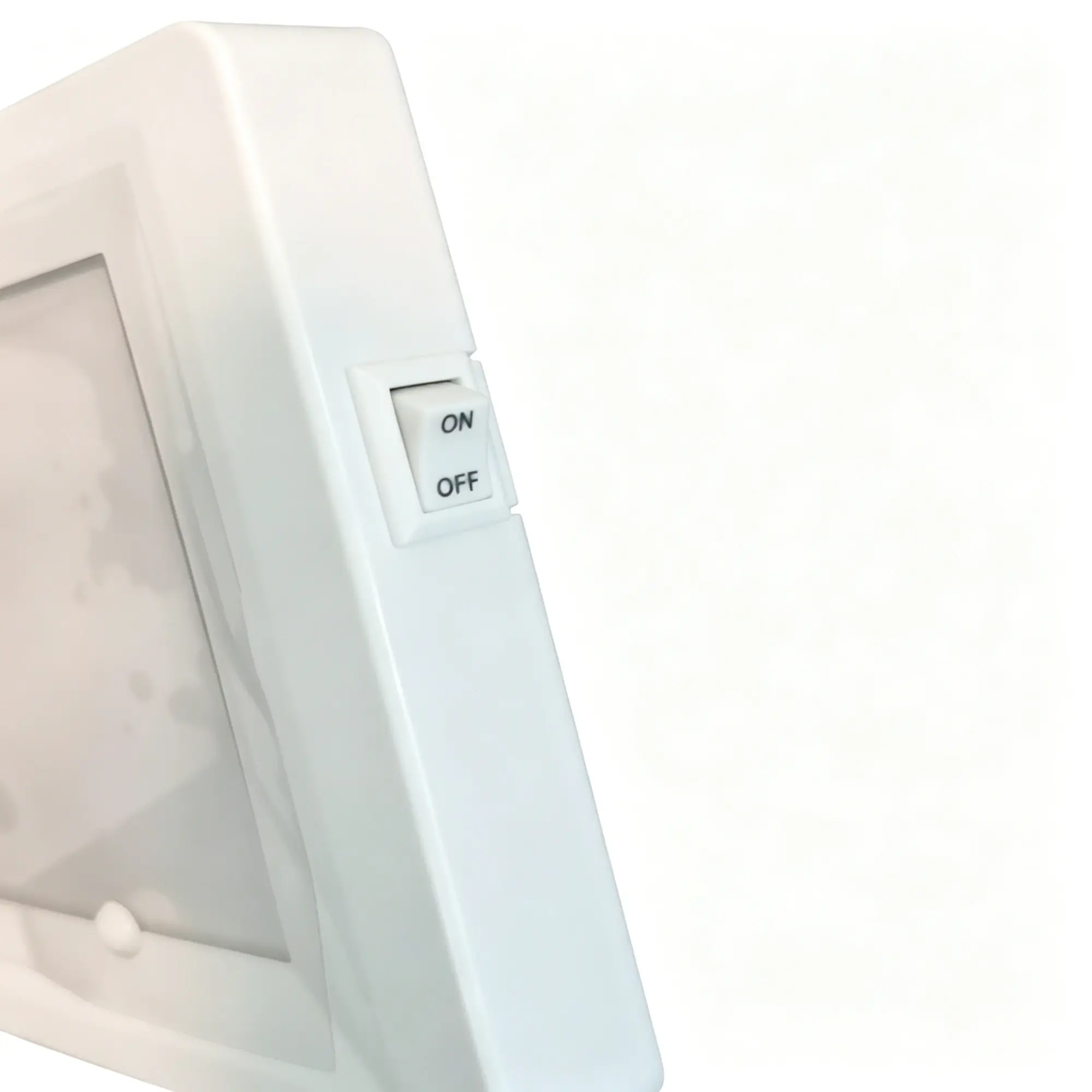

The CXV01 reference is a chair-mounted dental X-ray film viewer with a panel, mounting-bracket views and a side-switch detail. It illuminates an existing radiographic film and does not generate X-rays or acquire an image. The mounting arrangement makes installation space and chair interface important purchasing questions. The supplied light-head parameter table does not contain a CXV01 row, so this viewer remains a custom/OEM configuration rather than receiving unrelated lamp-head ratings. Use the gallery to identify the panel and bracket arrangement required for your unit.

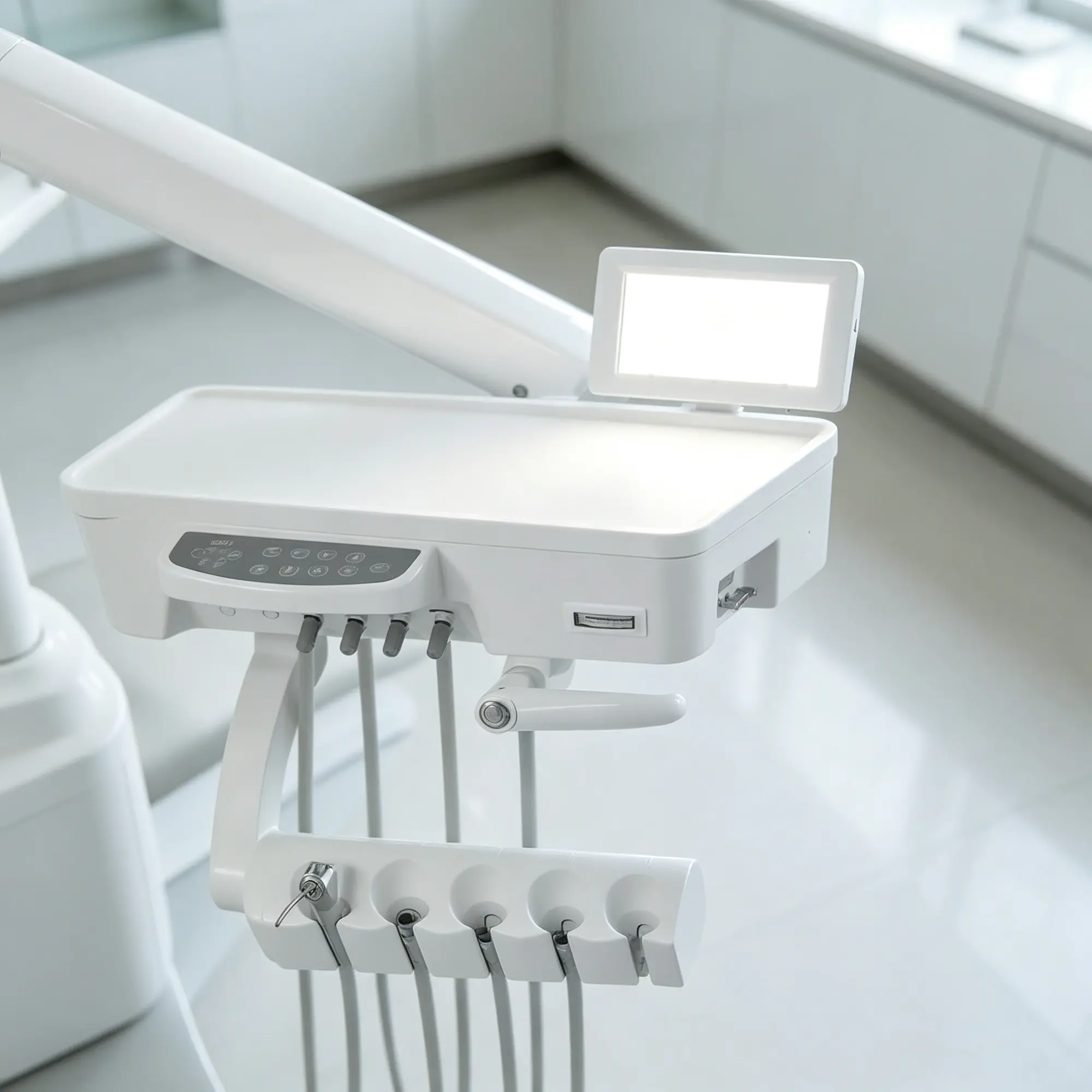

For a chair-mounted film illuminator enquiry, provide the target dental-unit model, mounting location and bracket or fixing dimensions. Identify the required panel position and available clearance around controls, handles and other accessories. Check the viewing angle and access to the side switch with the bracket in its intended position. A similar viewer housing does not establish a matching chair connection. Confirm the fixing arrangement and supplied mounting components on the drawing before purchasing, particularly when the viewer is intended as a service replacement for an existing installation.

State the film dimensions and required illuminated viewing area, then request the matching panel dimensions and input specification. Confirm power routing, adapter requirements and any destination plug arrangement for the selected configuration. Do not apply the 12–24 V AC specification of a dental lamp to this viewer without separate confirmation. During sample evaluation, review film placement, switch operation, panel position and installation fit against the agreed requirements. Keep the approved supply and mounting information with the sample record so repeat orders identify the same CXV01 configuration.

For CXV01 OEM supply or a bulk-order quotation, include the reference model, required bracket configuration, sample quantity, production forecast and destination market. Ask a chair mounted film viewer supplier to identify the panel, fixing hardware, adapter and any accessories in the supplied scope. Include labeling and instruction-language requirements where relevant. Request current sample and production timing rather than assuming a fixed catalogue lead time. Obtain the model-specific documents needed for your equipment qualification or importing process, and approve the installed sample before releasing a larger purchasing order.
